Products by Aquatrak
Aquatrak's line of liquid-level sensors and gauges
consists of the Model 3000 Series Transducer, which combines with the
Model 4110 Controller to retrieve and record data. Our newest
instrument, the Model 5000 Sensor, combines all of the features of both
the Model 3000 Transducer and 4110 Controller into a single, high
performance package.
Model 5000 Sensor
Our new Model 5000 Sensor boasts the same precision
and durability as the original Transducer and Controller set at a fraction
of the cost. Such qualities have made our gauges a preferred
instrument of numerous government agencies and private institutions across
the globe. Over 2200 units are maintained worldwide.
The Model 5000 Sensor is available in two configurations:
The Model 5002 comes with a waterproof Impulse connector, and the Model 5003 comes with a watertight Switchcraft connector.
* Connections to DSP and Temperature Probes
* Easy to install and maintain
* More efficient and cost-effective
* Fewer parts and accessories

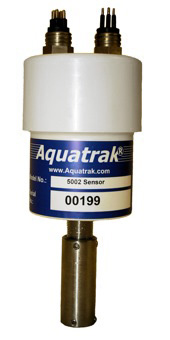

5002-SEN-4 Model 5002 Sensor w/ Impulse
Features top-mounted waterproof impulse connectors; combines 4110 microprocessor Controller and 3000 Transducer with firmware into a single package, with a 4 foot calibration tube.
5002-SEN-2 Model 5002 Sensor w/ Impulse
Same construction with a 2-foot calibration tube.
→ For international orders, please add an "-I" to the
end of all requested part numbers.

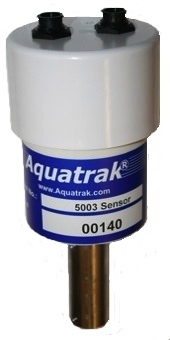

5003-SEN-4 Model 5003 Sensor w/ Switchcraft
Features top-mounted water-tight Switchcraft connectors; combines 4110 microprocessor Controller and 3000 Transducer with Version 5.XX firmware, with a 4 foot calibration tube. Includes 10-foot W-108-01 cable from Sensor to DCP.
5003-SEN-2 Model 5003 Sensor w/ Switchcraft
Same construction with a 2-foot calibration tube.
→ For international orders, please add an "-I" to the
end of all requested part numbers.
Model 4110/4100 Controller
The Model 4110 Controller retrieves electrical
signals from the Model 3000 Transducer, interprets the information, and relays
the data to the local data logger. The standard controller features three
Amphenol connectors that communicate with the transducer, receive supply
+12V power and SDI communications to the data logger and communicate via RS-232
Serial signal to a data logger.
* Connections to DCP and Transducer
* Easy to install and maintain
* Compatible with RS232 output
Also available from the factory is the same Model 4110
Controller with flying leads in place of the amphenol connectors standard
between the Transducer and DSP.
4110-MC-01 Model 4110 Controller w/ Amphenol
Uses Version 4.XX firmware. Includes a mating 3-foot SDI-12/Power cable and a
3-foot RS-232 cable.
→ For international orders, please add an "-I" to the
end of all requested part numbers.
4110-MC-02 Model 4110 Controller, Built-in Cables
Uses Version 4.XX firmware. Includes built-in 2.5-foot SDI-12/Power and
Transducer I/O Cables and a mating 3-foot RS-232 cable.
→ For international orders, please add an "-I" to the
end of all requested part numbers.
Model 3000 Transducer
The Model 3000 Transducer produces and receives sound
waves according to a unique and patented system. The device then transmits its
findings to the Model 4110 Controller for data collection and analysis.
As shown below, three different cable configurations are available for
the Model 3000 Series Transducer as best befit your equipment
specifications.
* Simple and effective design
* Easy to install and maintain

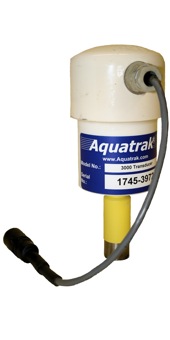

3000-XCR-4 Model 3000 Transducer w/ Side Pigtail
A 6-inch pigtail connector exits from the side, with a 4 foot calibration tube. Includes a 10-foot Sensor cable.
3000-XCR-2 Model 3000 Transducer w/ Side Pigtail
Same construction with a 2-foot calibration tube.
→ For international orders, please add an "-I" to the
end of all requested part numbers.

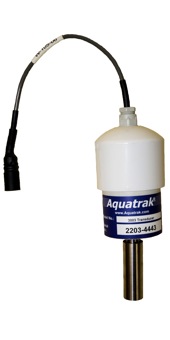

3001-XCR-4 Model 3001 Transducer w/ Top Pigtail
A 6-inch pigtail connector exits from the top, calibrated for 4 feet. Includes
a 10-foot Sensor cable.
3001-XCR-2 Model 3001 Transducer w/ Top Pigtail
Same construction with a 2-foot calibration tube.
→ For international orders, please add an "-I" to the
end of all requested part numbers.

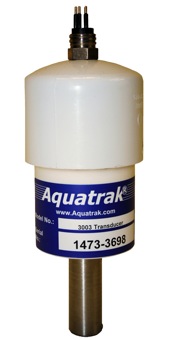

3003-XCR-4 Model 3003 Transducer w/ Impulse
Features a top-mounted bulkhead waterproof connector, with a 4 foot calibration tube.
3003-XCR-2 Model 3003 Transducer w/ Impulse
Same construction with a 2-foot calibration tube.
→ For international orders, please add an "-I" to the
end of all requested part numbers.
